A diaphragm and its nozzle block do one job in a steam turbine: take steam at a known pressure and direct it onto the next row of rotating blades at exactly the angle and velocity the design calls for. When that flow path erodes, distorts, or fouls with deposits, the turbine doesn't fail outright, it just quietly stops performing the way it was built to, showing up as lost efficiency, rising vibration, or uneven clearances long before anyone traces the cause back to a nozzle opening that's no longer the shape it was machined to be. Outage teams have always caught the obvious cases, the severe erosion and foreign object damage that jumps out during a visual inspection, but the slower failure modes, gradual distortion, deposit buildup, and clearance drift between major overhauls, tend to accumulate quietly across multiple outage cycles before they show up as a real performance or reliability problem. Getting ahead of that requires tracking diaphragm and nozzle condition consistently across outages rather than starting from scratch at each one, and a working session with our team can show what that tracked history looks like for your own turbine fleet.
Steam Turbine Maintenance · Diaphragm & Nozzle Block

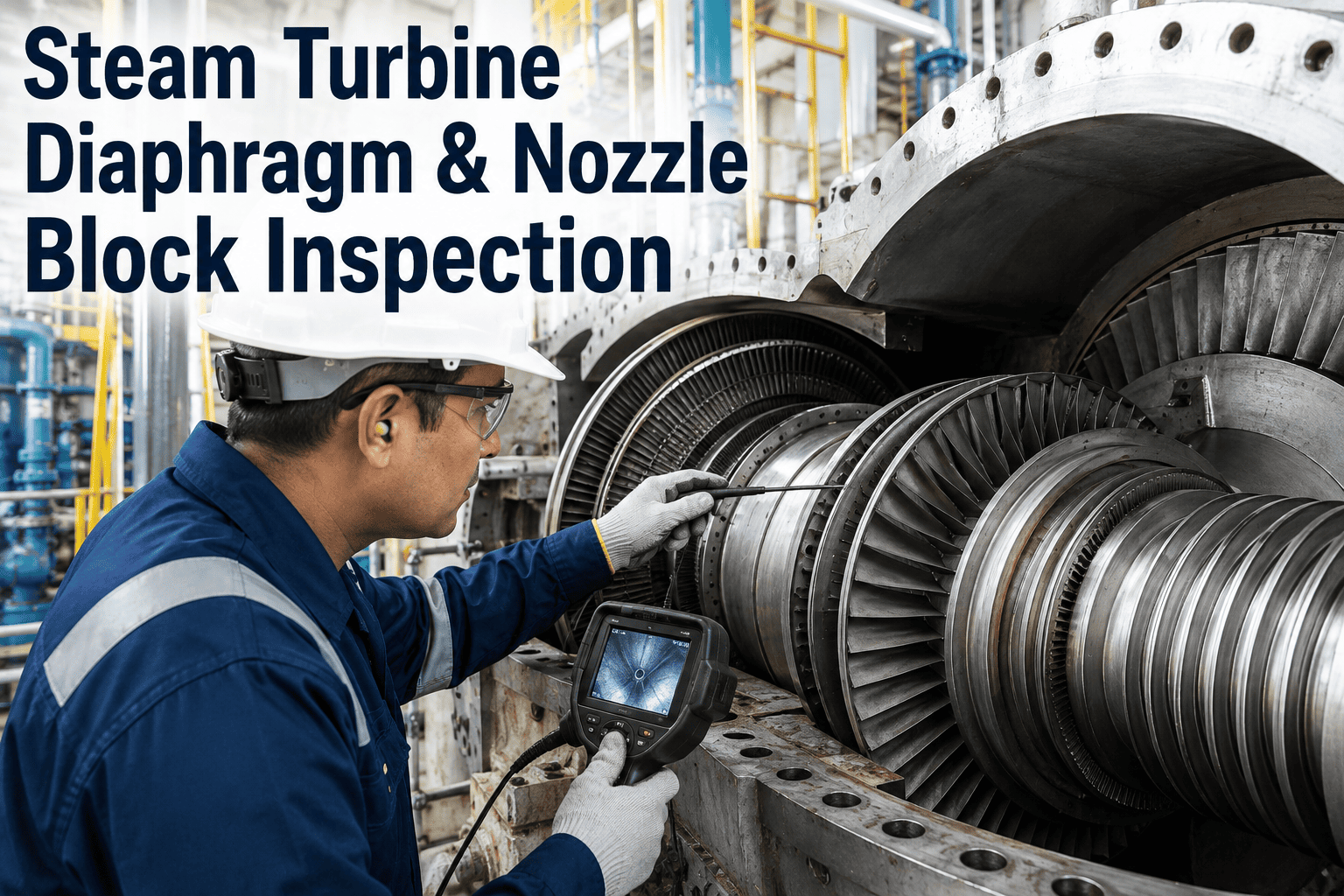

Steam Turbine Diaphragm and Nozzle Block Inspection
A structured way to inspect, measure, and track diaphragm and nozzle block condition across outages, catching erosion, corrosion, distortion, and deposit buildup before they turn into an efficiency loss, a vibration issue, or a rushed refurbishment decision at the next major overhaul.
Stage 7 Nozzle
Erosion Noted
Monitor Closely
Diaphragm Clearance
Within OEM Spec
Good
Deposit Buildup
Moderate Scaling
Trend Rising
Why This Component Matters
A Nozzle Opening That's a Few Thousandths Off Design Still Changes How the Whole Stage Performs
The nozzle block's geometry sets the velocity and angle at which steam strikes the next row of moving blades, so even modest distortion at the nozzle opening suboptimizes that handoff and shows up downstream as reduced stage efficiency rather than as an obvious fault at the diaphragm itself. Solid particle erosion from exfoliated boiler scale, moisture erosion in wetter stages, and general corrosion all reshape the nozzle throat gradually, opening-to-opening variation growing wider with every operating cycle until the flow path stops matching what the stage was designed around. Distortion doesn't just cost efficiency either. Uneven flow leaving a warped nozzle can increase blade excitation and resonance risk on the next rotating row, turning what started as a steam-path performance issue into a vibration and blade-life concern. None of this typically forces an emergency shutdown on its own, which is exactly why it tends to go unaddressed for outage after outage unless someone is actively comparing this cycle's measurements against the last one instead of just checking each finding off a pass/fail list.
The Inspection Sequence
What a Thorough Diaphragm and Nozzle Block Inspection Actually Covers
A complete inspection moves from the casing opening down to individual nozzle vanes, layering visual findings with dimensional measurement and non-destructive testing so nothing gets missed between what the eye catches and what only a gauge or a dye penetrant test reveals.
1
Visual and Borescope Survey Nozzle vanes and diaphragm sidewalls examined for scaling, erosion at leading edges, and mechanical or foreign-object damage before casing is fully opened.
2
Dimensional and Clearance Measurement Radial and axial clearances between diaphragm and rotor checked against OEM tolerance, along with nozzle opening width at multiple points around the arc.
3
Non-Destructive Testing Dye penetrant or ultrasonic testing applied where erosion, cracking, or weld degradation is suspected, confirming whether a finding is cosmetic or structural.
4
Alignment Verification Diaphragm segments checked against OEM alignment tolerance, with clearance keys measured and adjusted where laser alignment finds drift.
5
Repair or Refurbishment Decision Findings weighed against flow-path impact and structural risk to decide between minor blending, weld repair, or full nozzle block replacement.
Failure Modes at a Glance
What Each Damage Type Looks Like, and What It Usually Takes to Fix
Diaphragm and nozzle findings cluster into a handful of recurring failure modes, each with its own likely cause, detection method, and typical repair path.
| Damage Type | Common Cause | Detection Method | Typical Repair |
|---|---|---|---|
| Solid particle erosion | Exfoliated boiler scale carried in steam | Visual and borescope survey | Blending, weld buildup, or nozzle replacement |
| Moisture erosion | Wet steam conditions in later stages | Visual inspection at leading edges | Weld repair or erosion shield application |
| Distortion at nozzle opening | Thermal stress cycling over multiple starts | Dimensional flow-path measurement | Reshaping or restoring opening-to-opening consistency |
| Cracking | Fatigue, corrosion, or residual weld stress | Dye penetrant or ultrasonic testing | Excavation and weld repair, or replacement if severe |
| Deposit buildup and scaling | Water chemistry or steam purity issues | Visual survey, deposit sampling | Cleaning, with chemistry remediation to prevent recurrence |
Compare This Outage's Findings Against the Last Three
Most inspection records live in separate outage reports that never get compared side by side. A short session shows what a tracked diaphragm and nozzle condition history looks like across your turbine's last several outages.
Applied Example
How Gradual Nozzle Erosion Turns Into a Vibration Complaint Two Outages Later
Consider a mid-pressure stage where borescope surveys at two consecutive outages each note light leading-edge erosion on the nozzle vanes, individually small enough that neither finding triggers a repair on its own. Without a record connecting the two inspections, each one is evaluated in isolation and closed out as a minor, acceptable finding. By the third outage, the accumulated erosion has widened several nozzle openings enough that flow leaving the stage is no longer uniform around the arc, and operations has started noticing a vibration trend on that shaft that nobody had connected back to the steam path. Tracked against a condition history instead of three separate reports, the same two early findings would have shown a clear erosion trend accelerating stage over stage, giving the outage planning team the option to blend the affected vanes or apply an erosion-resistant repair at the second outage, well before the distortion reached the point of affecting flow uniformity and rotor vibration.
Paper Outage Reports vs Digital Borescope Records vs Tracked Condition History
Three Ways Diaphragm and Nozzle Findings Get Recorded
The inspection work itself, visual survey, dimensional measurement, NDT, tends to be thorough regardless of how it's recorded. What varies enormously is whether this outage's findings can actually be compared against the last one without someone digging through binders or PDF reports from a prior contractor.
Paper Outage Reports
Thorough for a single outage but nearly impossible to trend against prior findings.
Digital Borescope Records
Images and notes saved digitally, but still reviewed one outage at a time.
Tracked Condition History
Every stage's findings compared cycle over cycle, surfacing trends automatically.
What's Actually at Stake
Where an Untracked Diaphragm Finding Actually Costs a Plant
A single outage's worth of erosion or distortion rarely justifies a major repair on its own, and that's precisely the trap: each individual inspection closes out as acceptable, while the underlying trend keeps accelerating unnoticed across outages. The eventual cost shows up in more than one place at once. Heat rate degrades gradually as flow-path distortion suboptimizes the steam handoff at that stage, a loss that's easy to attribute to general aging rather than a specific, addressable nozzle condition. Vibration issues that trace back to uneven flow can force an unplanned inspection outage that costs far more in lost generation than the blending or weld repair would have, had it been caught a cycle or two earlier. And when a diaphragm finally does need full refurbishment, deciding the right scope, minor blending versus full nozzle block replacement, is much harder to justify to a budget owner without a documented trend showing how the damage progressed rather than a single snapshot from the current outage alone.
Every diaphragm inspection I've reviewed is thorough in isolation, that's never been the issue. The gap is almost always in the comparison. A technician notes light erosion on a nozzle vane, marks it acceptable, and that finding gets filed with the rest of the outage report. Nobody goes back three outages later and asks whether that same vane looked the same way, worse, or better, because the two reports live in different files from different years, sometimes from different contractors entirely. The plants that get ahead of nozzle and diaphragm degradation are the ones that treat every outage's findings as one more data point in a running history, not a standalone report that gets filed and forgotten.
Renata Adeyemi-Voss
Turbine-Generator Repair Engineer · 17 years in steam path inspection and refurbishment
Getting Started Guidance
What to Confirm Before Tracking Diaphragm and Nozzle Condition Across Outages
A short readiness check up front shows how much of your existing outage history can feed directly into a tracked record.
| Question | Why It Matters |
|---|---|
| How are current outage findings documented per stage? | Determines how easily historical reports can populate a baseline |
| Are OEM clearance and tolerance specs available per diaphragm? | Lets measurements be evaluated against the correct design limits |
| Which stages have shown recurring erosion or deposit findings? | Identifies where trend tracking adds the most value first |
| Who decides repair scope between minor blending and full replacement? | Defines the workflow a tracked trend needs to support |
Common Questions
Diaphragm and Nozzle Block Inspection — Frequently Asked
These are the questions outage planners and turbine engineers tend to ask first before adding structured condition tracking to their inspection process.
Does this replace the borescope and NDT work our outage contractor already does?
No, the physical inspection work, visual survey, borescope imaging, dye penetrant and ultrasonic testing, stays exactly the same and is still performed by your outage contractor or in-house team. What changes is what happens to those findings afterward, turning each outage's results into part of a running condition history per stage instead of a standalone report that gets filed and rarely revisited. Book a demo to see how existing inspection data feeds into a tracked record.
Can this work with outage reports we already have from past years?
Yes, historical outage reports can typically be used to build an initial baseline even if they were recorded on paper or in separate contractor formats, and the value of trend tracking grows with every additional outage cycle added after that. Starting with a few years of existing records is usually enough to see whether a stage's erosion or distortion findings are stable or accelerating. Contact support to review what your existing outage records can support.
How does tracking help decide between minor repair and full nozzle block replacement?
A single outage's findings rarely make the case for a major refurbishment on their own, but a documented trend showing erosion or clearance drift accelerating across three or four outages gives a much stronger basis for justifying full replacement scope to a budget owner than one report in isolation. It also helps confirm when a stage genuinely doesn't need major work yet, avoiding unnecessary scope. Book a session to see how a trend would look for your own stages.
Does this help catch problems tied to water chemistry or steam purity?
Deposit buildup and scaling findings tracked across outages can reveal a pattern tied to water chemistry issues that a single inspection wouldn't clearly show, since one outage's deposit finding looks routine on its own but a recurring pattern at the same stages points toward a chemistry root cause worth investigating upstream. Ask our team about connecting deposit trends to chemistry data.
Is this useful for a single turbine or does it need a full fleet to make sense?
A single turbine still benefits significantly since the core value comes from comparing this outage's findings against the same unit's own history, and a fleet view simply adds the ability to compare similar stages across multiple units to spot patterns tied to a shared root cause like fuel quality or water treatment. Either way, the per-unit trend is where most of the practical decision-making value comes from. Book a call to talk through what fits your fleet size.
