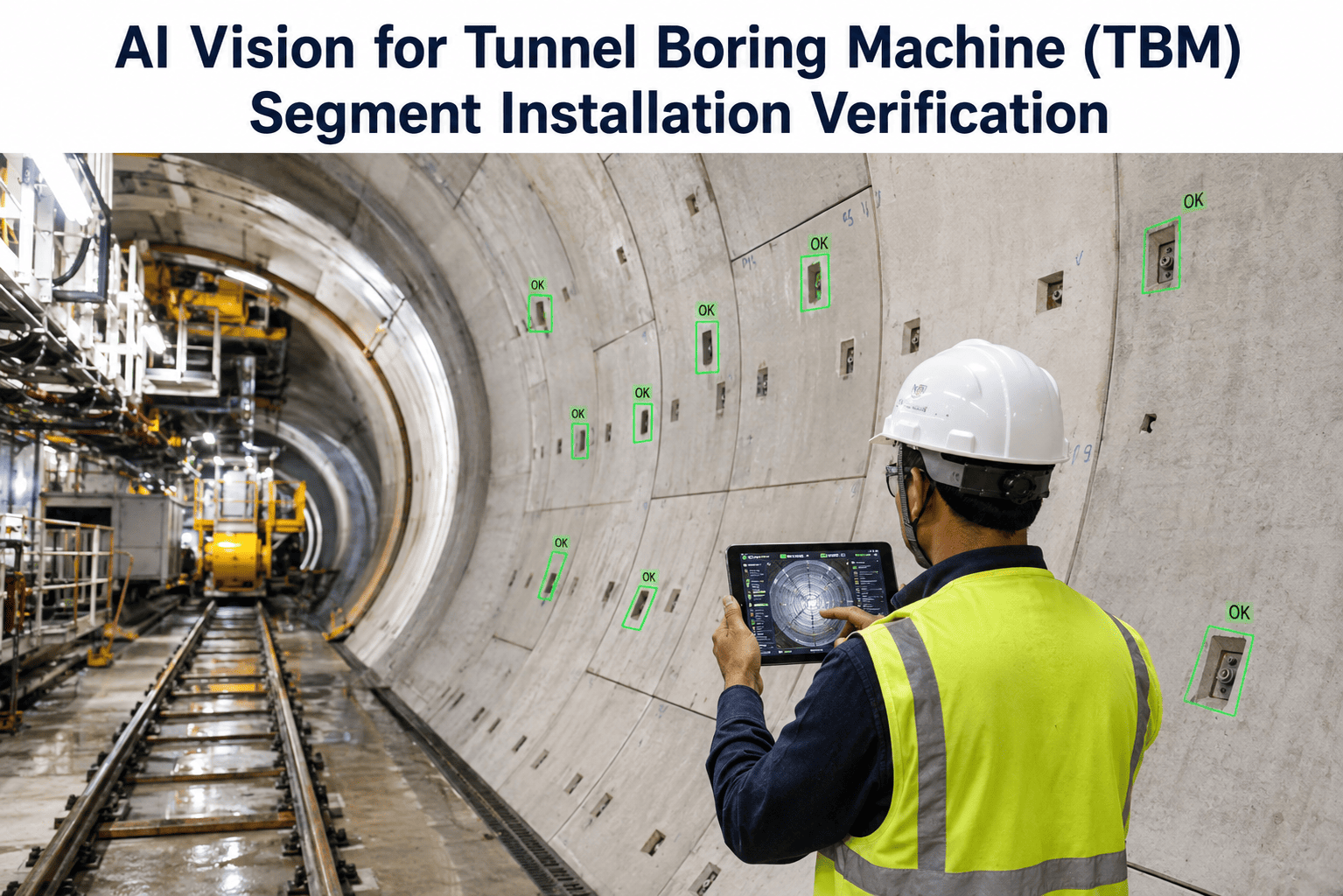

A tunnel boring machine doesn't stop to let anyone check its work. While the cutterhead advances, a ring of six to eight precast concrete segments gets positioned, bolted, and sealed behind the shield, roughly every 60 to 90 minutes on a well-run drive. Catching a misaligned segment or a pinched gasket after the TBM has moved on means drilling back into a finished ring under groundwater pressure. AI vision verifies ring build quality inside that same cycle, using cameras already mounted on the erector. Book a demo to see it running on a live TBM feed.
CONSTRUCTION VISION · TBM SEGMENT INSTALLATION
The Ring Gets Built in 90 Minutes. The Defect Gets Found in Six Months.
By the time a segment misalignment or gasket defect shows up as a leak, the TBM is a kilometer past it and the annulus grout has already set. AI vision catches it during the same erection cycle, while the fix is still a five-minute adjustment.
60-90 min
Typical ring build cycle on an active drive
10-40mm
Misalignment range shown to raise tensile stress risk
6-8
Segments per ring, each a separate joint to verify
THE GAP BETWEEN BUILD AND DISCOVERY
Why Ring Defects Are Found Months After the Ring Is Built
A shield tunnel's permanent lining is inspected once, informally, by the erector operator watching a monitor during placement, and then not meaningfully re-examined until water starts finding its way through a joint. Research tracking over a thousand rings across active metro drives found that the majority of water manifestations trace back to the locking segment, the last piece placed in each ring and the one under the most installation stress. By the time that leak appears, the ring is buried under annulus grout, the TBM has advanced dozens of rings further, and the fix requires drilling back through a finished structure rather than a five-minute correction during erection.
2
Bolted & sealed
t + 15 min
3
Annulus grouted
t + 90 min
4
Leak discovered
t + weeks to months
RING ANATOMY
Every Joint in a Ring Is a Separate Failure Point
A typical ring is built from six to eight precast segments arranged around the bore, each meeting its neighbors at a radial joint and the previous ring at a circumferential joint. Every one of those joints carries its own gasket, its own bolt pattern, and its own tolerance for gap, step, and lip before watertightness is compromised. Verifying a ring means checking all of it, not just the segment that looked obviously off to an operator glancing at a monitor mid-placement.
Radial Joints
Where adjacent segments in the same ring meet. Gap and step tolerances here directly affect gasket compression and joint watertightness.
Circumferential Joints
Where the new ring meets the previously erected ring. Ring rotation and stagger patterns depend on this joint tracking true.
The Locking Segment
The final piece placed in each ring, wedged into the remaining gap. Statistically the highest-risk joint for misalignment and leakage.
Bolt Pockets
Each joint carries multiple bolts torqued to a specified preload. Under-torqued bolts allow joint movement under TBM thrust loads.
THREE THINGS THE CAMERA CHECKS
What AI Vision Actually Verifies at the Erector
The camera doesn't replace the erector operator's judgment, it gives that judgment a permanent, measurable record for every joint on every ring, checked against the same tolerance every time rather than a human's fatigue-dependent glance.
01
Segment Alignment
Cameras positioned on the erector arm and shield tail measure gap and step at each radial and circumferential joint against the design tolerance, flagging any joint approaching the threshold where tensile stress on the segment concrete becomes a concern.
02
Gasket Placement
Vision confirms the gasket seated correctly along the full joint length before the segment is pushed home, catching pinched, rolled, or displaced gasket sections that would otherwise only surface as a leak after grouting.
03
Bolt Torque Indicators
Visual torque-indicator marks or bolt-head position are verified at each connection point, confirming every bolt in the joint reached its documented preload before the ring advances out of reach.
DOES VERIFICATION SLOW THE TBM DOWN
Checking the Ring Without Stopping the Machine
This is the question every TBM crew asks first, and it's the right one to ask, because advance rate is the metric that determines whether the drive finishes on schedule. AI vision inspection is designed around the existing erection cycle rather than adding a step to it, using cameras already positioned to observe segment placement and running inference in the seconds between placements rather than pausing the machine to inspect.
MANUAL VISUAL CHECK
Operator glances at a monitor while managing the erector controls, thrust cylinders, and grout system simultaneously. Judgment on gap and step is by eye, not measurement, and fades over a 12-hour shift. No permanent record exists beyond a shift log entry, so the specific joint condition at placement time is unrecoverable once the ring is buried.
AI VISION VERIFICATION
Cameras already mounted on the erector capture every joint at the moment of placement, with inference running in the seconds before the shield advances. Measurements against tolerance are consistent shift after shift, and every joint's recorded condition becomes a permanent, retrievable part of the ring build record tied to that exact ring number.
See It Verify a Ring Without Slowing the Cycle
Send us your erector camera positions and current ring build cycle time. We'll show you where inference fits inside it.
MANUAL VS AI VISION, JOINT BY JOINT
Coverage Across a Full Ring, Not a Sample
Manual inspection realistically covers whichever joints the operator happens to be watching when the segment lands, because attention is finite and the erector needs constant hands-on control. Vision-based verification covers every joint on every ring by default, which is the difference between a spot-check and a complete record.
| Verification Point | Manual Check | AI Vision |
|---|
| Joints checked per ring | Whichever the operator notices | All 6-8, every ring |
| Gap/step measurement | Visual estimate | Measured against tolerance |
| Gasket seating check | Rarely checked before push-home | Verified before segment seats |
| Bolt torque confirmation | Trusted to torque wrench setting | Visually confirmed per bolt |
| Record per ring | Shift log note, if any | Timestamped image + measurement |
| Locking segment scrutiny | Same attention as other segments | Flagged as elevated-risk automatically |
FROM CAMERA TO RECORD
How a Ring Moves From Placement to Documented Approval
Verification isn't a single snapshot, it's a short sequence that runs alongside the existing erection steps and produces a record tied permanently to that ring's number and position in the drive.
1
Segment approaches final position. Erector-mounted cameras capture the joint as the segment nears push-home, before the gasket makes final contact.
2
Gasket and alignment checked. Vision confirms gasket seating and measures gap/step against tolerance in the seconds before the segment is pushed home.
3
Bolts torqued and confirmed. Torque-indicator marks are verified at each bolt pocket once the joint is closed, before the ring is released from the erector.
4
Ring flagged or approved. Any joint outside tolerance raises an immediate flag while the segment is still reachable; a clean ring is logged and the drive continues.
5
Record attached to ring number. Timestamped imagery and measurements are stored against that specific ring, retrievable months later if a leak investigation needs the original build data.
WHY THE LOCKING SEGMENT GETS EXTRA SCRUTINY
The One Joint Statistically Responsible for Most Leaks
Field investigation of over ten thousand installed rings found that a disproportionate share of water manifestations trace back specifically to the locking segment, the last piece wedged into each ring's remaining gap. It's placed under different mechanical conditions than the other segments, forced into a tighter tolerance window, which makes it the joint most likely to see a pinched gasket or an out-of-tolerance gap. AI vision can apply a tighter automatic flag threshold specifically to the locking segment on every ring, giving it the scrutiny the failure data says it needs without slowing down the other five to seven segments in the ring.
WHAT SHOWS UP WHEN VERIFICATION IS MISSING
Six Ways an Unverified Ring Turns Into a Problem
None of these failure modes are exotic. They are documented, common outcomes of ring build defects that went unflagged during installation, and each one costs dramatically more to fix once discovered than it would have cost to catch at placement.
Locking segment leak months later
A pinched gasket at the final segment goes unnoticed, then surfaces as groundwater infiltration long after the TBM has advanced past it.
Stress concentration from misalignment
A crown or invert segment misaligned beyond tolerance shifts internal force distribution across the whole ring, raising tensile stress risk in the lining.
Under-torqued bolts loosening under thrust
A bolt that never reached its preload allows joint movement once the TBM's cutterhead torque and thrust loads reach that ring.
Retroactive repair under groundwater pressure
Fixing a joint after grouting means drilling back into a finished, buried structure, often under active water pressure at depth.
No build record for the investigation
Without a documented condition at placement, diagnosing why a specific ring leaks becomes guesswork months after the fact.
Pattern repeats across the drive
A recurring installation error, like a jig misalignment or a consistent under-torque, keeps happening ring after ring because nothing flagged the first occurrence.
BEFORE YOU START
Readiness Checklist for TBM Vision Verification
A deployment goes smoothly when these basics are confirmed before cameras are mounted. Use this checklist to see where your drive currently stands.
Erector camera positions identified, including line of sight to gasket and bolt pocket areas at each joint
Design tolerances documented for gap, step, and bolt preload at every joint type in the ring
Ring numbering and build-record system in place to attach verification data to the correct ring
Locking segment position and sequence confirmed so it can be flagged for tighter scrutiny automatically
TURNKEY AI DEPLOYMENT
iFactory Ships Vision Hardware Built for TBM Conditions
A TBM's backup gear operates in a confined, vibration-heavy, dust-and-moisture environment that most vision hardware isn't rated for. iFactory ships a pre-configured NVIDIA edge AI server, racked and ready, with the vision software pre-loaded and cameras sized for erector mounting. Rack it, plug power and Ethernet, and the AI is live, verifying rings from the very next erection cycle.
Pre-configured NVIDIA edge AI hardware, racked and shipped ready to install on the TBM backup
Cameras and mounting hardware sized for erector-arm and shield-tail positions
Software licensing with model training on your specific segment geometry and gasket profile included
Cabling, network integration, and ring-numbering system connection
Operator training and documentation for the erector and site QA team
Twenty-four seven remote monitoring from day one of the drive
DEPLOYMENT TIMELINE
Live in 6 to 12 Weeks From Contract to Ring Verification
Because tunneling schedules are unforgiving, deployment is structured to fit around an active drive rather than requiring a pause in production to install.
Weeks 1-4
Ship, Mount, and Baseline Data
Hardware ships pre-racked. Cameras mounted on the erector during a scheduled maintenance window, baseline imagery collected across your segment types and gasket profile.
Weeks 5-8
Model Training and Shadow Verification
Model trained on your specific joint tolerances. Runs in shadow mode alongside manual checks, with flags compared against operator judgment before go-live.
Weeks 9-12
Go-Live and Ring Record Integration
System takes verification authority with ring-by-ring records flowing into your build documentation, plus twenty-four seven remote monitoring active.
FREQUENTLY ASKED QUESTIONS
Questions Tunneling Teams Ask Before Deploying
Will this slow down our ring build cycle?
No, and this is the design constraint the whole system is built around. Cameras already have line of sight to the joints during normal erection, so verification runs on imagery captured during the existing placement sequence rather than requiring the erector to pause. Inference completes in the seconds between segment placement and push-home, well inside a typical 60 to 90 minute ring cycle, and a flagged joint is caught while the segment is still adjustable rather than after the ring has moved out of reach.
Book a demo to see the timing against your specific erector cycle.
How does the camera see through the dust and moisture in an active bore?
TBM backup environments are genuinely harsh, with fine particulate, condensation, and vibration all present simultaneously, which is exactly why the hardware and camera housings are specified for this environment rather than adapted from a factory floor deployment. Lighting is positioned to work with the enclosed, low-ambient-light conditions typical of a tunnel bore, and housing and lens selection account for the dust and moisture load a TBM backup generates continuously during operation.
Can this catch a problem before the segment is fully pushed home?
Yes, gasket seating and alignment are checked as the segment approaches its final position, before the erector releases it and before annulus grouting locks the ring in place, which is the window where a correction is still a simple re-positioning rather than a retroactive repair. Bolt torque confirmation happens once the joint is closed but still while the ring is accessible from the backup gear, so a flagged bolt can be re-torqued on the spot rather than discovered later.
Does this replace the erector operator or the site QA process?
No, it gives both a consistent, measured record to work from rather than replacing their judgment. The operator still controls placement and can act immediately on a flag while the segment is reachable, and site QA gains a permanent, ring-numbered record instead of a shift-log note, which matters enormously if a leak investigation months later needs to trace back to the exact build condition of a specific ring.
Contact our support team to see how the verification record integrates with your existing QA documentation.
How is the locking segment handled differently from the others?
Because field data consistently points to the locking segment as the highest-risk joint in each ring, its verification tolerance is set tighter by default, so a gap or gasket condition that would pass on another segment can still trigger a flag on the locking segment specifically. This mirrors what experienced tunneling crews already do informally by paying closer attention to the last piece placed, but applies it automatically and consistently across every ring in the drive rather than depending on which operator is on shift.
