Biofilm in a brewery rarely announces itself as an obvious problem — it shows up first as an unexplained flavor drift in a batch, a slightly-off draft line nobody can quite pin down, or a yeast strain that behaves differently than it did last quarter. By the time biofilm is visible or a swab test confirms it, it has often had weeks to establish itself in low-flow zones a standard CIP cycle never fully reaches. iFactory helps breweries detect biofilm risk early and design cleaning protocols strong enough to prevent it from establishing in the first place, detailed at iFactory support.
Biofilm Prevention & CIP Design · Brewery & Beverage

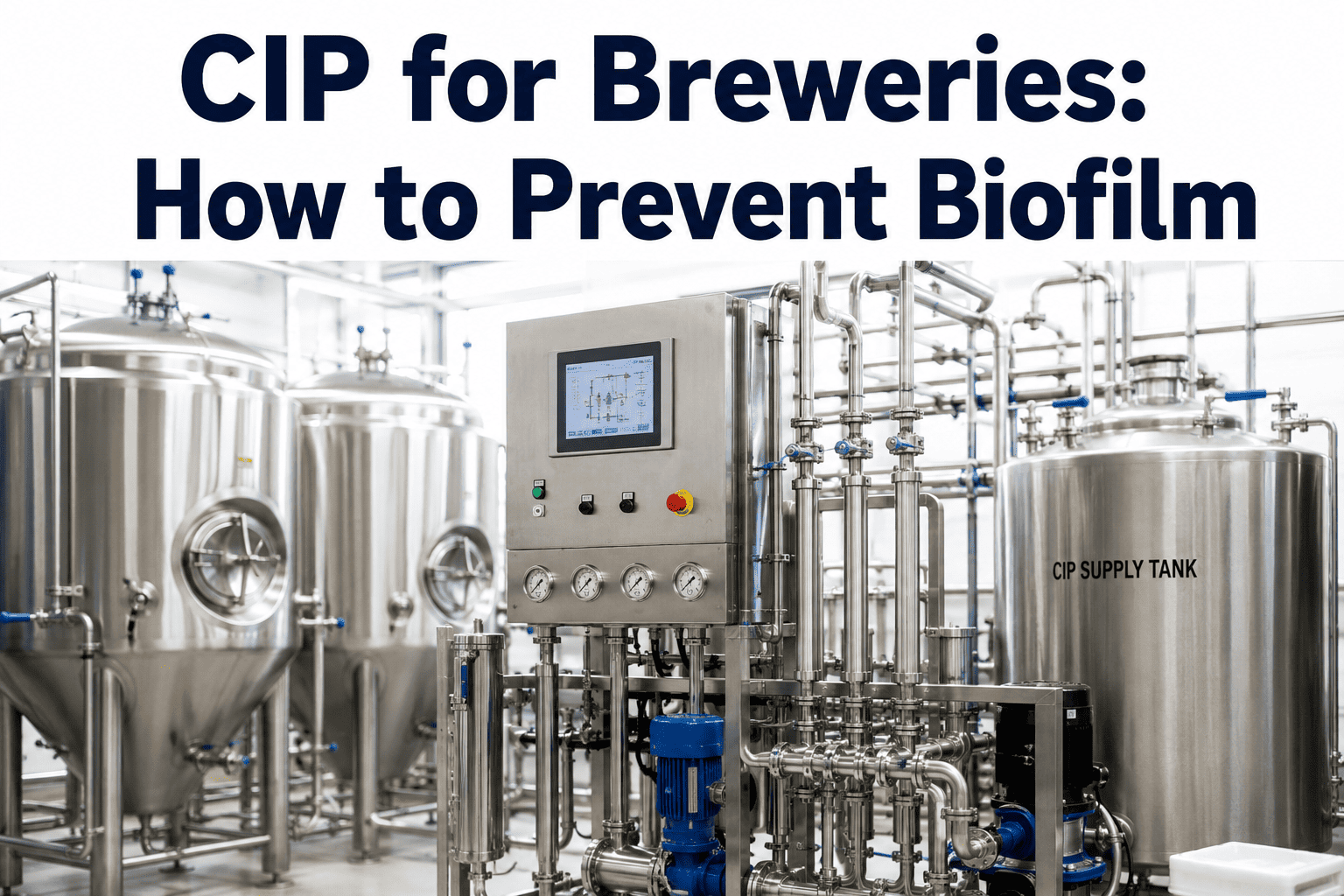

CIP for Breweries: Biofilm Wins in the Spots a Standard Cycle Never Reaches
iFactory identifies the low-flow zones where biofilm actually establishes in fermenters and draft lines, and helps design enhanced cleaning protocols that close the gap before contamination affects a batch.
Where Biofilm Actually Forms
Four High-Risk Zones in a Typical Brewery
01
Fermenter Racking Arms
Low-flow dead legs at racking arm connections give bacteria a foothold that a standard tank CIP spray pattern often doesn't fully disrupt.
02
Draft Line Interiors
Long beverage lines with infrequent full-strength cleaning are one of the most common sources of biofilm-driven flavor contamination in draft systems.
03
Valve Seats & Gaskets
Worn gaskets and valve seats create microscopic crevices where cleaning solution flow is disrupted, giving biofilm a protected space to establish.
04
Heat Exchanger Plates
Fine channel geometry in plate heat exchangers combines with residual sugars to create conditions biofilm exploits quickly if cleaning falls behind schedule.
A Flavor Complaint Is Often the First Sign of a Biofilm Problem That's Already Weeks Old
Detecting biofilm risk before it affects a batch means monitoring the zones a standard CIP cycle is most likely to under-clean, not waiting for a swab test to confirm what's already there.
Enhanced Cleaning Protocol
Five Steps to Closing the Biofilm Gap
1Map every dead leg, low-flow zone, and worn gasket location across fermenters, draft lines, and heat exchangers.
2Increase caustic contact time specifically in identified high-risk zones rather than uniformly across the whole system.
3Schedule draft line cleaning on a frequency matched to actual usage volume, not a fixed calendar interval.
4Monitor flow rate and pressure during CIP cycles to confirm cleaning solution is actually reaching low-flow zones.
5Pair enhanced cleaning with periodic swab or ATP testing at the highest-risk points to validate the protocol is working.
Standard CIP vs. Biofilm-Focused Protocol
What Changes When Cleaning Targets Known Risk Zones
Factor
Standard CIP Cycle
Biofilm-Focused Protocol
Dead Leg Coverage
Assumed adequate from general spray pattern
Verified flow reaching mapped low-flow zones
Draft Line Frequency
Fixed calendar schedule regardless of usage
Matched to actual pour volume and line length
Detection Timing
Found through flavor complaints or visible contamination
Flagged through flow and ATP monitoring before batch impact
Field Case
Tracing a Recurring Off-Flavor to a Single Racking Arm
A regional brewery had experienced an intermittent off-flavor in roughly one batch out of every eight from a specific fermenter, with the standard CIP cycle showing no visible issues and swab tests near the tank body coming back clean. Flow monitoring during CIP cycles revealed that the racking arm connection on that specific fermenter was receiving significantly reduced cleaning solution flow compared to the rest of the tank, consistent with a partially obstructed dead leg. Targeted enhanced cleaning at that connection point, combined with a gasket replacement, eliminated the recurring off-flavor across the following twelve batches.
1 in 8Batches previously affected
12Consecutive clean batches after fix
1Racking arm connection identified as source
Frequently Asked Questions
Brewery Biofilm Prevention — Common Questions
How do you find biofilm risk zones without shutting down production to inspect every connection?
Flow rate and pressure monitoring during normal CIP cycles can identify zones receiving reduced cleaning solution flow without requiring any additional downtime, since the data comes from the cycles already running as part of standard operations. Zones showing consistently lower flow relative to design expectations become priority candidates for physical inspection during the next scheduled maintenance window.
Book a Demo to see flow monitoring applied to your CIP system.
Is ATP testing necessary if we're already monitoring flow rates?
Flow monitoring identifies where cleaning solution may not be reaching effectively, while ATP or swab testing confirms whether biological contamination is actually present at that point. The two methods complement each other — flow data tells you where to look, and testing confirms what's actually there, giving a more complete picture than either alone.
Can this help with draft line cleaning at off-site accounts, not just the brewery?
Usage-based draft line cleaning scheduling can extend to off-premise accounts where pour volume data is available, helping breweries prioritize which accounts need more frequent line cleaning visits rather than applying a blanket schedule across every location regardless of actual usage.
Contact support to discuss off-site draft line programs.
Will identifying dead legs require replacing fermenter hardware?
Many dead leg issues are resolved through enhanced cleaning protocols, gasket replacement, or minor piping adjustments rather than full hardware replacement. Cases involving significant equipment design flaws are less common but are flagged clearly when identified, so a facility can plan hardware changes during a scheduled retrofit rather than reactively.
How long does it take to implement enhanced biofilm monitoring?
A single-fermenter or single-line pilot typically goes live within one to two weeks, covering flow sensor installation and baseline mapping. Full brewery-wide rollout across multiple fermenters and draft systems generally takes three to six weeks depending on facility size.
Book a Demo for a rollout plan specific to your brewery.
Find the Zones Where Biofilm Actually Establishes Before It Reaches the Next Batch
Flow-based biofilm risk detection with targeted cleaning protocol design, live in as little as one week.
