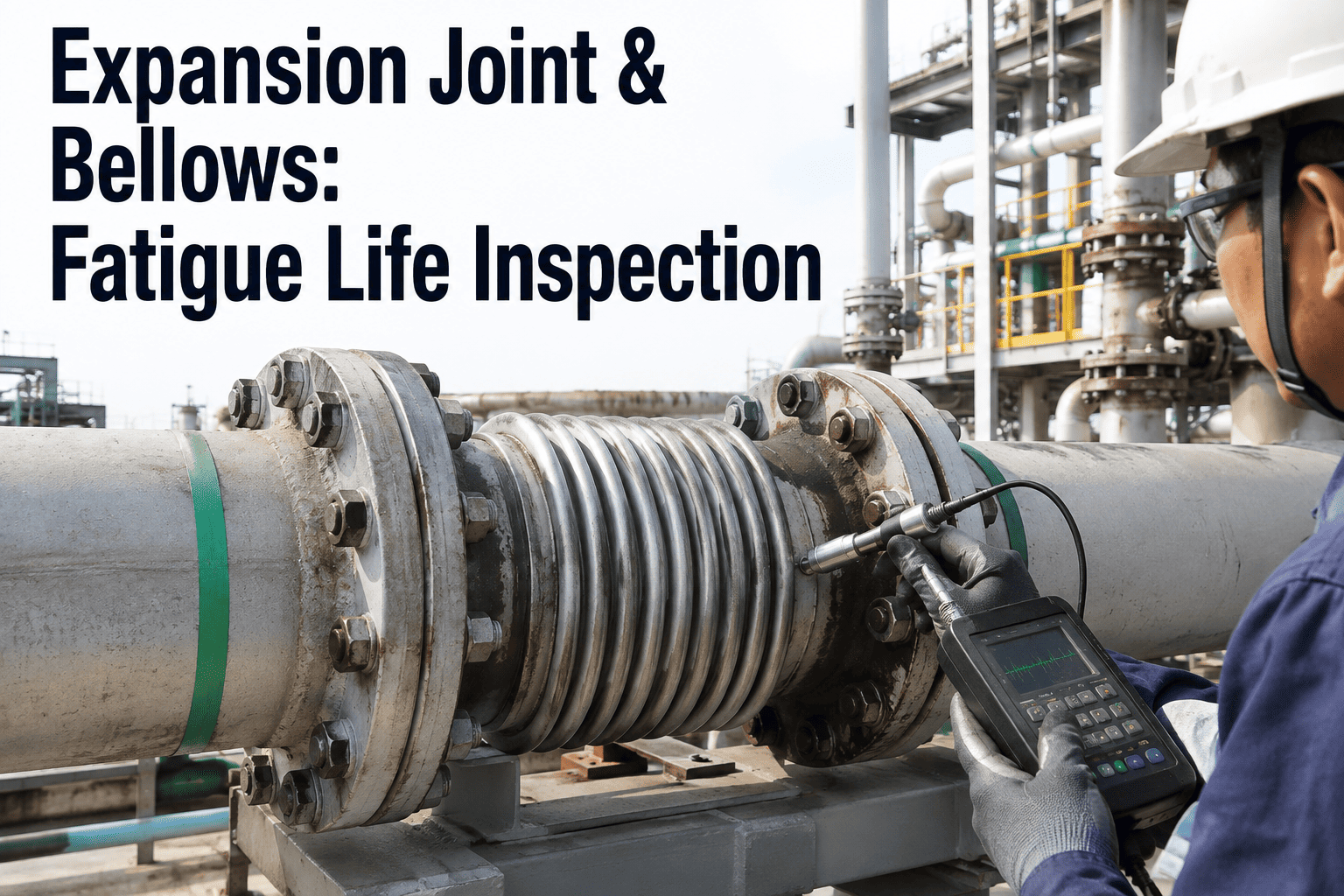

Expansion Joint & Bellows: Fatigue Life Inspection

A bellows expansion joint is designed to flex thousands of times, absorbing thermal growth so the rigid piping around it doesn't have to. That flexing is also what eventually kills it — every cycle adds fatigue damage to the thin convolutions, and a bellows can go from visibly intact to leaking in a single additional cycle once it crosses its fatigue limit. Most plants inspect joints visually and call it done, which catches corrosion but says nothing about remaining cycle life. This guide covers inspecting bellows properly and counting cycles against design life, with support from iFactory's asset integrity team along the way for plants ready to move past guesswork.

Why Bellows Fail Differently Than Straight Pipe

A straight run of piping fails through a slow, visible process — wall thinning, pitting, or a crack that grows over months and is usually caught by routine UT or visual inspection before it becomes a leak. A bellows fails through fatigue, and fatigue failure in thin-wall metal is not slow or gradual in its final stage. The convolutions accumulate microscopic damage with every thermal cycle, invisible to the eye and undetectable by wall thickness measurement, until a crack initiates at a stress concentration point — typically the root or crest of a convolution — and propagates through the wall in a fraction of the total cycles the joint has experienced. A bellows that looks perfect on a Tuesday visual inspection can develop a through-wall crack within days if it happens to be near the end of its fatigue life when an unusual thermal transient adds a large-amplitude cycle.

The Three Failure Modes That Matter

Effective bellows inspection has to look for three distinct and largely independent failure mechanisms, because a joint can be perfectly healthy on two of them and still be days from failure on the third.

Inspection Methods Ranked by What They Actually Detect

No single method in that table is sufficient by itself. A visual-only program will miss the fatigue cracking that causes most failures, while a cycle-counting program that never inspects the physical joint has no way to catch corrosion or support-driven damage that isn't captured by a cycle model. The strongest programs run cycle tracking continuously as the primary early-warning signal, then schedule targeted dye penetrant or eddy current examination once a joint crosses a defined remaining-life threshold — typically 70% of design cycles consumed — rather than inspecting every joint on the same fixed calendar regardless of how hard it has actually been worked.

EJMA Standards and Why Nameplate Data Matters

The Expansion Joint Manufacturers Association publishes the design standard that governs how most metal bellows used in power piping are engineered, tested, and rated for cycle life. An EJMA-compliant joint arrives with a nameplate or data sheet specifying its rated movement in each direction — axial, lateral, and angular — along with the design pressure, temperature, and the cycle life that rating was calculated against. That documentation is not paperwork to file away; it is the baseline every remaining-life calculation depends on, and a plant that has lost or never retained original bellows data sheets is working from guesswork rather than an engineered number.

Field replacement joints installed without matching the original EJMA design basis are one of the more common and least visible sources of premature failure. A replacement sourced on price or availability rather than an exact movement and cycle-life match can look identical to the original joint while carrying a materially different fatigue rating, and that mismatch typically isn't discovered until the joint fails earlier than expected, sometimes years ahead of the schedule the plant believed it was working against. Maintaining a current record of design basis, movement rating, and cycle life for every bellows in the plant — tied to the physical joint through a tag number — is the single most useful piece of documentation an integrity program can keep, and it is exactly the kind of record that a platform like iFactory keeps linked directly to the joint's live cycle count rather than in a separate binder.

Estimating Remaining Fatigue Life

Remaining life estimation for a bellows starts with the design cycle life stamped on the nameplate or listed in the manufacturer's data sheet, which is calculated against a specified movement amplitude — usually the full rated axial, lateral, or angular movement for that joint. The complication is that real operating cycles rarely match the rated amplitude exactly. A joint rated for 1,000 cycles at full rated movement can tolerate far more cycles if actual thermal movement is smaller than the design case, or far fewer if misalignment or an unusual operating mode pushes movement beyond what the joint was sized for.

Modern remaining-life estimation applies a cumulative fatigue damage model — commonly a Miner's rule approach — that weights each recorded cycle by its actual movement amplitude relative to the rated amplitude, rather than simply counting cycles as identical events. A plant that has been tracking generic start-stop counts without amplitude data is working from an approximation that can be significantly wrong in either direction. Capturing actual displacement data from position sensors or thermal growth calculations at the joint location, and running it through an amplitude-weighted fatigue model, gives a materially more accurate remaining-life number than cycle counting alone — and iFactory automates that calculation using operating data already flowing from the plant's DCS.

Where Bellows Joints Do the Most Damage When They Fail

Not every expansion joint carries the same consequence of failure, and inspection priority should track that reality rather than treat every bellows on the plant equally. High-temperature steam line joints sit at the top of the risk list — a rupture releases high-pressure steam near operating personnel and can cause severe injury in addition to the forced outage, which is why many plants apply the most conservative remaining-life thresholds and the most frequent NDE to steam service bellows regardless of their calculated cycle count.

Flue gas and exhaust ducting joints carry a different risk profile. Failure rarely creates the same acute safety hazard as a steam release, but a flue gas leak from a large rectangular expansion joint can force an immediate unit trip due to emissions or draft loss, and repair access on ducting joints is often complicated by their size and location relative to other equipment. Cooling water and condensate joints tend to sit lowest on the consequence scale — failures are messy and require cleanup but rarely threaten personnel safety — yet they should not be ignored entirely, since a failed cooling water joint can still force an unplanned outage if it disables a critical cooling loop. Ranking joints by consequence of failure, not just by remaining cycle life, gives inspection budget the clearest possible allocation across dozens or hundreds of joints in a typical plant, and this two-axis view — likelihood from cycle data combined with consequence from service criticality — is the same risk-based logic that underpins broader pressure equipment inspection planning across the entire site, not just the population of expansion joints and bellows.

Building a Spares and Replacement Strategy Around Cycle Data

Custom bellows fabrication is not a fast procurement. Depending on size, alloy, and design pressure, lead time from order to delivery commonly runs eight to sixteen weeks for a joint that isn't a stock catalog item, which is longer than most outage planning windows allow if the need is only discovered after the outage schedule is already locked. Plants that treat replacement as a reactive decision — waiting for an inspection to confirm damage before ordering — routinely end up either extending an outage to wait for a joint or running a compromised joint past its safe window because the replacement isn't ready yet.

A cycle-tracking program removes the guesswork from that timeline. Once a joint's remaining life crosses a defined threshold, procurement can begin immediately with a known delivery date, and the replacement can be scheduled into whichever upcoming outage lines up with both the joint's remaining safe life and the fabrication lead time. For critical joints on lines where an unplanned failure would be a major safety or environmental event, some plants go a step further and keep a pre-fabricated spare in inventory once cycle data shows the joint is approaching its final quarter of design life, accepting the carrying cost of a spare against the much larger cost of an emergency outage, a tradeoff that becomes easier to justify once the actual cost of past unplanned bellows failures at the plant is quantified rather than estimated informally. Getting this sequencing right depends entirely on having accurate, current cycle data rather than a rough estimate updated once a year during a scheduled inspection.
